Entry 1: The Project and Lessons

Jan 17, 2024, 5 min read

Summary

  • The project is a web application that teaches students computer science through a curriculum. It is divided into multiple chapters/topics, and each of them has a level-grade assigned to it.
  • The implementation uses Google Sheets to store the lesson and exercise data. The data on the sheets is managed by automated processes written in Google Apps Script.
  • The application interfaces with the database through Apps Script, which can POST data or generate and store JSON.
  • Another option is to use Postman, which has all the APIs for the database.
  • However, it is recommended to use the first method for testing which keeps the database and the sheets in sync.

#Onboarding
Wednesday, 19 January 2024, 10:30 AM (AEDT)
Yashwanth Nagaraju

Project Development/Production Website

CSEducation
academy.aubot.com
Copyright © CSEducation 2024
🔐 CREDENTIALS
Username
BikramPaul
Password
bikram@204

See Codebase.

Shared Files

Important

All files below are shared with ryanvu58.work@gmail.com.

Python curriculum
Used for tasks:
⌚ Planning 📝 Assignments ℹ️ Info
Python Exercises
Used for tasks:
🐞 Bug Tracker 📈 Progress Tracker ⌚ Planning
Python Implementation
Used for tasks:
🧪 Testing ⚙️ Implementation

1. Intro to Python
Used for tasks:
📄 Draft
2. Data types
Used for tasks:
📄 Draft
3. Variables
Used for tasks:
📄 Draft
4. If (Making Decisions)
Used for tasks:
📄 Draft
5. While loops
Used for tasks:
📄 Draft
6. Debugging 1
Used for tasks:
📄 Draft
7. For Loops
Used for tasks:
📄 Draft
8. Strings
Used for tasks:
📄 Draft
9. Functions
Used for tasks:
📄 Draft

About the curriculum

Ref: Sheet: Python curriculum

ChapterLevel-Grade
Intro to Python (76)G0
Data Types (85)G1
Variables (312)G2
If (242)G3
While Loops (165)G4
Debugging 1 (89)G5
For Loops (263)G6
Strings (509)G7
Functions (392)G8
Lists (445)H0
Tuples (339)H1
Sets (345)H2
Dictionaries (374)H3
Files (181)H4
Classes (324)H5
Adv For Loops (239)I0
Modules (164)I1
Exception (274)I2
Recursive Functions (170)I3
List/ Set/ Dictionary Comprehension (315)I4
Debugging 2 (168)I5

CSEducation
📙 Lesson
academy.aubot.com/lesson/{_id}

Lesson

Lesson ID

Decoding

Lesson: G0001-1

  • G0: Level-Grade
  • 001: Story
  • - 1: Order [OPTIONAL]

Definition/Decoding:

  • Chapter: Intro to Python
  • Story: 1
  • Order: 1

Refs: Sheet: Python Implementation, Doc: 1. Intro to Python

Data Schema

Ref: Sheet: Python Implementation

{
    "_id": INT,
    "level": ENUM,
    "difficulty": INT,
    "story": INT,
    "order": INT,
    "exerciseType": "lesson",
    "language": "python",
    "chapter": VARCHAR,
    "lesson": VARCHAR,
    "sublesson": VARCHAR,
    "instructions": [
	    {
            "line": INT,
            "content": [
                {
                    "type": ENUM,
                    "payload": [],
                    "payloadType": ENUM
                }
            ]
        }
    ]
}

Key definitions

  • 🔑 _id: see Lesson ID
  • 🔑 level: (G | H | I)
  • 🔑 difficulty:
    • For level G: 0 - 8
    • For level H: 0 - 5
    • For level I: 0 - 5
  • 🔑 chapter: see About the curriculum
  • 🔑 lesson: top-level header/associated header to lesson. See Doc: 1. Intro to Python
  • 🔑 sublesson: direct header associated to sublesson. See Doc: 1. Intro to Python
  • 🔑 instructions.line:
  • 🔑 instructions.content.type:
    • instructions : renders markdown payload only using <p> tags
    • listExplanation: renders list items
    • codeAreaTitle: renders code snippet with title: “Code:”
    • codeArea: renders code snippet
    • outputAreaTitle: renders output snippet with title: “Output:”
  • 🔑 instrutions.content.payloadType:
    • markdown (default renderer)
    • html

Payload types

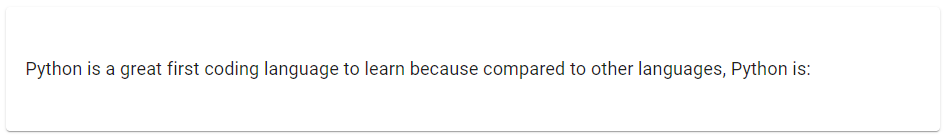

instructions

{lesson}.instructions.content
[
	{
		"type": "instructions",
		"payload": [
			"Python is a great first coding language to learn because compared to other languages, Python is:"
		],
		"payloadType": "markdown"
	}
]

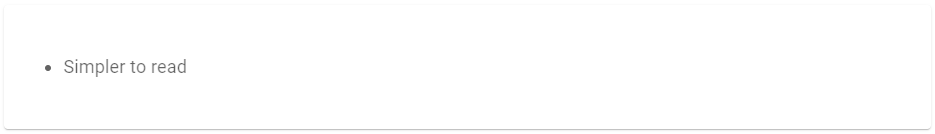

listExplanation

{lesson}.instructions.content
[
	{
		"type": "listExplanation",
		"payload": [
			"Simpler to read"
		],
		"payloadType": "markdown"
	}
]

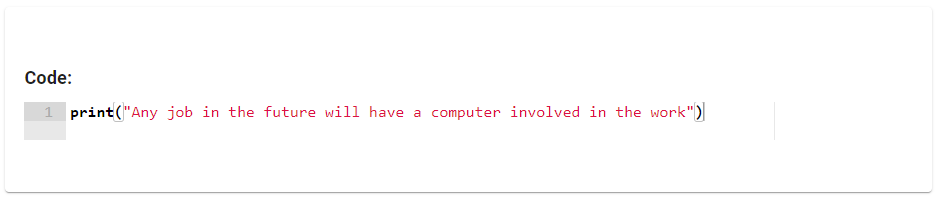

codeAreaTitle

{lesson}.instructions.content
[
	{
		"type": "codeAreaTitle",
		"payload": {
			"code": "print(\"Any job in the future will have a computer involved in the work\")",
			"mode": "python"
		},
		"payloadType": "markdown"
	}
]

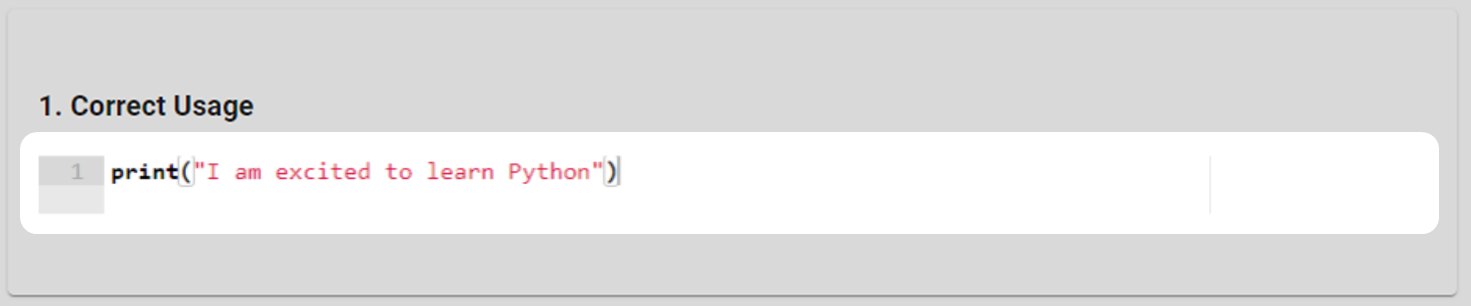

codeArea

{lesson}.instructions.content
[
	{
		"type": "instructions",
		"payload": [
			"**2. Incorrect Usage**"
		],
		"payloadType": "markdown"
	},
	{
		"type": "codeArea",
		"payload": {
			"code": "Print(\"I am excited to learn Python\")",
			"mode": "python"
		},
		"payloadType": "markdown"
	}
]

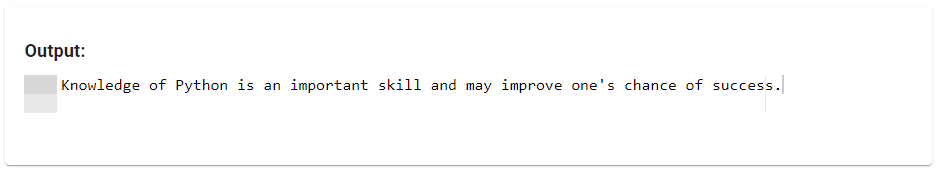

outputAreaTitle

{lesson}.instructions.content
[
	{
		"type": "outputAreaTitle",
		"payload": {
			"code": "Knowledge of Python is an important skill and may improve one's chance of success.",
			"mode": "python"
		},
		"payloadType": "markdown"
	}
]

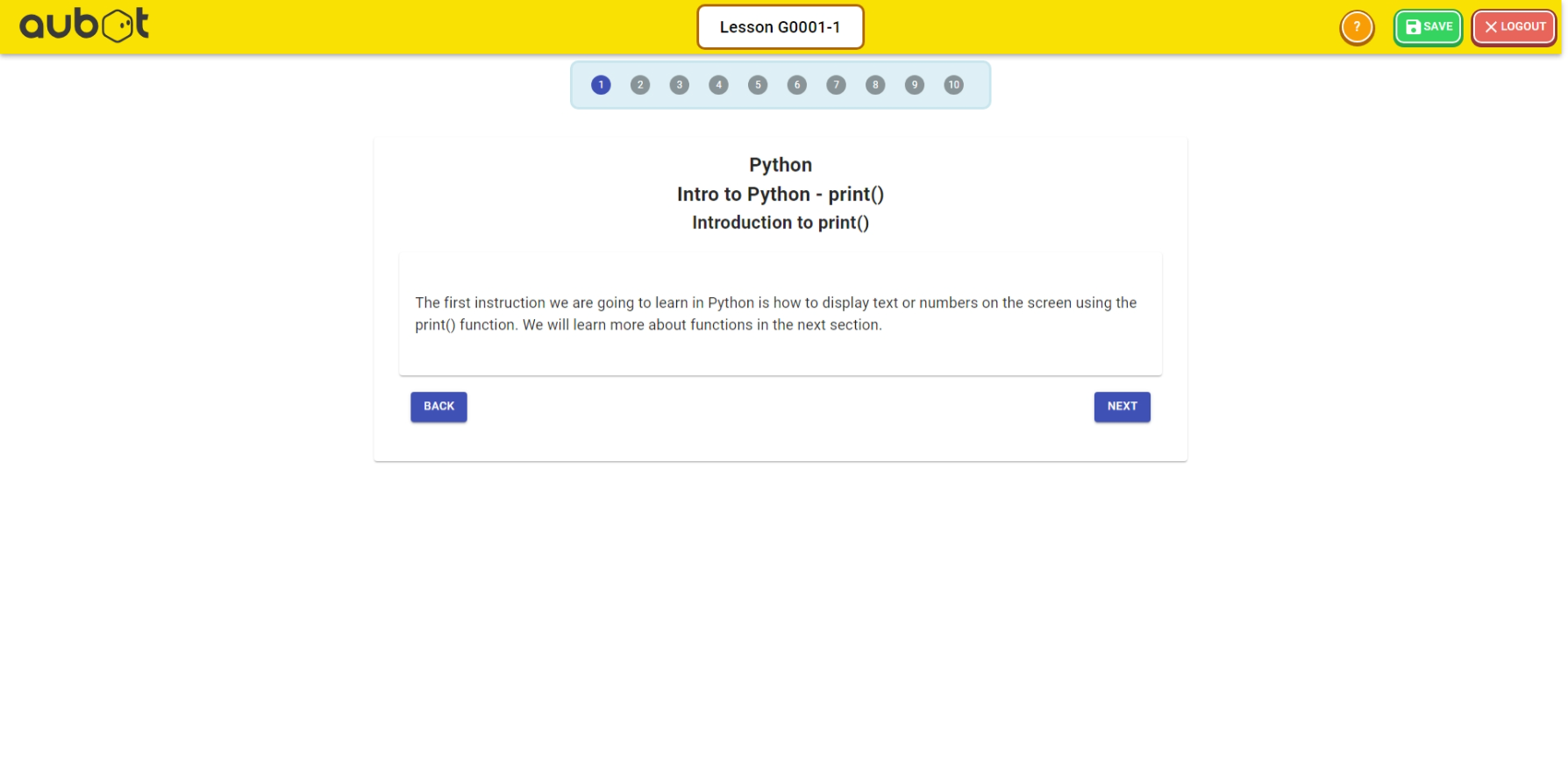

Sublesson

Rendering

JSON Response

{
    "_id": "G0001-1",
    "level": "G",
    "difficulty": 0,
    "story": 1,
    "order": 1,
    "exerciseType": "lesson",
    "language": "python",
    "chapter": "Intro to Python",
    "lesson": "print()",
    "sublesson": "Introduction to print()",
    "instructions": [
        {
            "line": 1,
            "content": [
                {
                    "type": "instructions",
                    "payload": [
                        "The first instruction we are going to learn in Python is how to display text or numbers on the screen using the print() function. We will learn more about functions in the next section."
                    ],
                    "payloadType": "markdown"
                }
            ]
        }
    ],
    "createdAt": "2023-12-20T09:00:57.303Z",
    "updatedAt": "2023-12-20T09:00:57.303Z",
    "__v": 0
}

APIs

View Lesson

CSEducation
⚙️ API /
academy.aubot.com/api/lesson/{_id}
  • Response: {lesson}

Post Lesson

CSEducation
⚙️ API /
academy.aubot.com/api/lesson
  • Request Body: {lesson}
  • Response: {lesson}

Delete Lesson

CSEducation
⚙️ API /
academy.aubot.com/api/lesson
  • Request Body:
{
	"_id": "{lesson_id}"
}
  • Response: {lesson}
